Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174,MHz
UHF: 400-440, 440-480 MHz
700/800: 762-776 MHz, 850-870 MHz
Power Output:
Single: 50W, 100W
Dual: 50 W
Number of Channels/Groups/Zones:
1,000
Channel spacing:
12.5kHz
Tait
TB9400

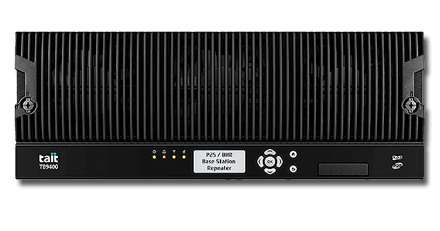

The Tait TB9400 Base Station, powered by Tait, is a reliable, scalable open-standards-based P25 migration solution. This interoperable base station/repeater has multimode functionality providing analog simulcast over IP, P25 Phase 1, and P25 Phase 2.
Dimensions W x H x D
19 x 7 x 15.8 in (483 x 177 x 400 mm)
Weight
Single 50 W: 43.2 lb (19.6 kg)
Single 100 W: 46.5 lb (21.1 kg)
Dual 50 W: 57.7 lb (24.8 kg)
Operating temperature
-22ºF to 140ºF (-30ºC to 60ºC)
Mil spec
MIL-STD-810C, D, E, F and G
Flexible, efficient P25 and analog networking>
With a modular design as well as remote management and monitoring options, the TB9400 is an efficient, cost-effective solution that can adapt and grow with an organization’s P25 radio system. The integrated software voter and simulcast controller reduces your need for additional hardware and saves rack space. Remote management and monitoring options include combined diagnostics and access level control, multiple user accounts, fault diagnosis, and detailed alarm monitoring and management.
Key Benefits
- Operation in VHF, UHF and 700/800 MHz frequency bands
- Ensure a smooth migration from Analog to Digital with multimode functionality
- Scalable, open-standard P25 migration solution ensures interoperability with other agencies
- Secure, remote management and monitoring options
- Designed and tested for resilience and reliability to mitigate network outages
 | 302-06033-00 TB9400 Offset Mounting Bracket (front mount) - Order qty of 2 to mount a single base station. |
| T01-01150-0003 Kit TBC Single Channel upgrade for TB94 |
| TBAA03-13 TB8000/9000 Auxiliary Support Bracket |
| TBAA03-16 TB8000/9000 Carrying Handles |
| TBCA03-10 Relay coax assembly (TB94) |
| TB9415D-050T TB9400 Dual 50Watts Chassis Assembly |
| TB9415S-050T TB9400 Single 50Watts Chassis Assembly |
| TB9435S-100T TB9400 Single 100Watts Chassis Assembly |
| TB9444-RX1T TB9400 Single Receiver x1 Capable Chassis Assembly |
| TB9444-RX2T TB9400 Multi Receiver x2 Capable Chassis Assembly |
| TB9444-RX3T TB9400 Multi Receiver x3 Capable Chassis Assembly |
| TB9444-RX4T TB9400 Multi Receiver x4 Capable Chassis Assembly |
| T01-01121-BABA TB94 Linear PA 136-174MHz 50Watts |
| T01-01121-BBBA TB94 Linear PA 136-174MHz 100Watts |
| T01-01121-DABA TB94 Linear PA 148-174MHz 50Watts |
| T01-01121-DBBA TB94 Linear PA 148-174MHz 100Watts |
| T01-01121-JAAA TB94 Linear PA 378-420MHz 50Watts |
| T01-01121-JBAA TB94 Linear PA 378-420MHz 100Watts |
| T01-01121-KAAA TB94 Linear PA 400-440MHz 50Watts |
| T01-01121-KBAA TB94 Linear PA 400-440MHz 100Watts |
| T01-01121-LAAA TB94 Linear PA 440-480MHz 50Watts |
| T01-01121-LBAA TB94 Linear PA 440-480MHz 100Watts |
| T01-01121-MAAA TB94 Linear PA 470-520MHz 50Watts |
| T01-01121-MBAA TB94 Linear PA 470-520MHz 100Watts |
| T01-01121-NAAA TB94 Linear PA 762-870MHz 50Watts |
| T01-01121-NBAA TB94 Linear PA 762-870MHz 100Watts |
| TBA3001-1100 TB9000 Power Management Unit DC12volts with Aux12volts |
| TBA3001-1200 TB9000 Power Management Unit DC12volts with Aux24volts |
| TBA3001-1400 TB9000 Power Management Unit DC12volts with Aux48volts |
| TBA3002-2100 TB9000 Power Management Unit DC24volts with Aux12volts |
| TBA3002-2200 TB9000 Power Management Unit DC24volts with Aux24volts |
| TBA3002-2400 TB9000 Power Management Unit DC24volts with Aux48volts |
| TBA3004-4100 TB9000 Power Management Unit DC48volts with Aux12volts |
| TBA3004-4200 TB9000 Power Management Unit DC48volts with Aux24volts |
| TBA3004-4400 TB9000 Power Management Unit DC48volts with Aux48volts |
| TBA30A0-0100 TB9000 Power Management Unit AC with Aux12volts |
| TBA30A0-0200 TB9000 Power Management Unit AC with Aux24volts |
| TBA30A0-0400 TB9000 Power Management Unit AC with Aux48volts |
| TBA30A1-1100 TB9000 Power Management Unit ACDC12volts with Aux12volts |
| TBA30A1-1200 TB9000 Power Management Unit ACDC12volts with Aux24volts |
| TBA30A1-1400 TB9000 Power Management Unit ACDC12volts with Aux48volts |
| TBA30A2-2100 TB9000 Power Management Unit ACDC24volts with Aux12volts |
| TBA30A2-2200 TB9000 Power Management Unit ACDC24volts with Aux24volts |
| TBA30A2-2400 TB9000 Power Management Unit ACDC24volts with Aux48volts |
| TBA30A4-4100 TB9000 Power Management Unit ACDC48volts with Aux12volts |
| TBA30A4-4200 TB9000 Power Management Unit ACDC48volts with Aux24volts |
| TBA30A4-4400 TB9000 Power Management Unit ACDC48volts with Aux48volts |
