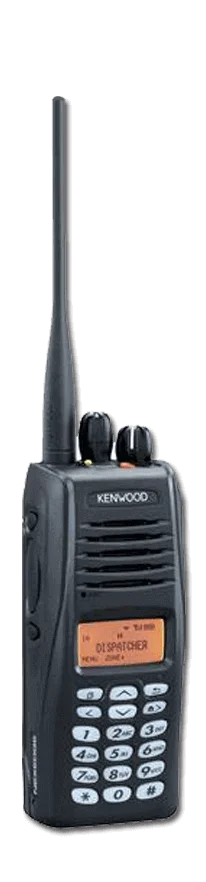

KENWOOD has expanded NEXEDGE™ products to 800 MHz, including the NX-410 and NX-411 portable. This will allow users to replace existing 800MHz systems and is designed for use by utilities, SMR operators, transportation, government agencies and critical infrastructure. All offer NXDN® conventional, conventional IP, trunked single site and multi-site network capabilities and operate in 6.25 and 12.5 kHz digital modes.
Frequency Band:
800/900MHz
Frequency Range:
806-870 MHz / 896-941 MHz
Power Output:
2.5W/3W
Standard battery chemistry type:
Ni-MH
Battery life (based on a 5-5-90 duty cycle):
11 Hours
Number of Channels/Groups/Zones:
512 Channels / 128 Zones
Channel spacing:
12.5 / 25 kHz 12.5 kHz Analog
12.5 / 25 kHz Digital
Dimensions Dimensions W x H x D (with standard battery)
2.28 x 5.46 x 1.60 in
Weight (with standard battery)
19.58 oz
Keypad / Keys
12-Key Keypad
Display
14-Character Alphanumeric Aliases
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
 | KRA-32K 700/800 MHz Whip Antenna |
 | KRA-36 700/800 MHz Stubby Antenna |
 | KRA-38K 800/900 MHz Whip Antenna |
| KRA-39 900 MHz Stubby Antenna |
 | KBP-6 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included |
| KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included) |
 | KNB-33L 2000 mAh, Li-ion battery - requires KSC-32/326K/326AK charger |
| KNB-41NC 2500 mAh, Ni-MH battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option] |
| KNB-43L 3300 mAh, Li-Polymer battery - requires KSC-32/326K/326AK charger |
 | KNB-54N 2500 mAh, Ni-MH battery - requires KSC-32/326K/326AK charger |
| KNB-73LCM 2000 mAh, Li-ion battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option] |
 | KSC-32 Rapid-rate single-unit charger for KNB-31A/32N/33L/41NC/43L/47L/48L/50NC
|
 | KSC-326AK Rapid-rate 6-unit charger CEC Compliant |
 | KVC-15 Rapid-rate DC vehicular charger adapter for the KSC-32 |
| KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only |
 | KBH-10 Spring action belt clip |
 | KBH-11 Spring action belt clip (2.5") |
| KBH-8DS Leather swivel belt loop with portable D-Ring attachment |
| KLH-137ST Firemen's Heavy-Duty Leather Shoulder Strap for a Heavy-Duty Leather Case (KLH-75B/76B/78B/79B//92/122/123/133/148/154) |
 | KLH-154K2 Heavy-duty leather carrying case for NX-210K2/410K2/411K2 |
| KLH-6SW Leather swivel belt loop / detachable swivel D-Ring back |
| KCT-51 Hirose 6-pin Adapter (adapts KVL/aftermarket audio acc. to portable connector)[Intrinsically Safe Approved Accessory] |
 | KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics |
| KHS-11BL 2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-12BL 3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-14 Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-BH Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-OH Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KMC-40 MIL-SPEC, Speaker Microphone with Antenna Connector [Intrinsically Safe Approved Accessory] |
| KMC-41M MIL-SPEC, IP54/55 Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-42WDM MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-47GPSD GPS Speaker Microphone [Intrinsically Safe Approved Accessory] |
 | KMC-51DM MIL-SPEC, IP54/55 DSP Digital Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
 | KMC-52 MIL-SPEC, IP67 (Immersion) DSP Digital Noise-canceling Speaker Mic |
