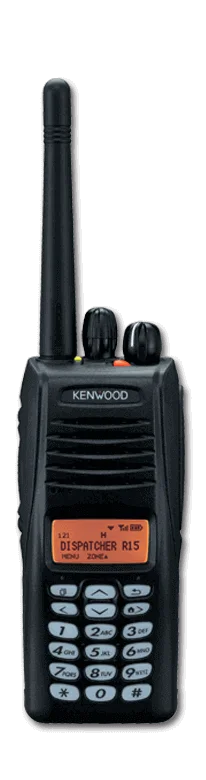

The KENWOOD NX-210G portable is the latest addition to the NEXEDGE® lineup - designed specifically for users preferring a mid-size platform with a larger keypad. The NX-210G has the same NXDN® digital, analog, LCD display, PF key capabilities and transmit/receive specifications as the NX-200 and comes standard with a DTMF encoder with large backlit keys ideal for applications requiring frequent text messaging, selective signaling or interconnect.
Frequency Band:
VHF
Frequency Range:
136-174 MHz
Power Output:
Standard battery chemistry type:
Battery life (based on a 5-5-90 duty cycle):
14 Hours
Number of Channels/Groups/Zones:
512 Channels / 128 Zone
Channel spacing:
12.5 / 15 / 25 / 30 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions H x W x D (with standard battery)
2.28 x 5.46 x 1.60 in
Weight (with standard battery)
18.52 oz
Keypad / Keys
Large 12-Key DTMF Keypad
Display
14-Character Alphanumeric Aliases
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD 810 C/D/E/F
IP Standards
IP54/55
 | KRA-22M VHF low-profile antenna 148-162 MHz |
| KRA-22M VHF low-profile antenna 162-174 MHz |
| KRA-22M VHF Low-profile helical antenna 136-150 MHz |
 | KRA-23M UHF low-profile antenna 450-490 MHz |
| KRA-23M2 UHF low-profile antenna 470-520 MHz |
 | KRA-25 High-gain VHF helically loaded whip antenna 148-162 MHz |
 | KRA-26M VHF helical antenna 146-162 MHz |
| KRA-26M2 VHF helical antenna 162-174 MHz |
| KRA-26M3 VHF helical antenna 136-150 MHz |
 | KRA-27M UHF whip antenna 440-490 MHz |
| KRA-27M2 UHF whip antenna 470-520 MHz |
| KRA-28 Broadband VHF helically loaded whip antenna 140-170 MHz |
 | KRA-43GM VHF helical antenna 146-162 MHz (w/GPS) |
| KRA-43GM2 VHF helical antenna 162-174 MHz (w/GPS) |
| KRA-43GM3 VHF helical antenna 136-150 MHz (w/GPS) |
 | KBP-6 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included |
| KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included) |
 | KNB-33L 2000 mAh, Li-ion battery - requires KSC-32/326K/326AK charger |
| KNB-41NC 2500 mAh, Ni-MH battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option] |
| KNB-43L 3300 mAh, Li-Polymer battery - requires KSC-32/326K/326AK charger |
 | KNB-54N 2500 mAh, Ni-MH battery - requires KSC-32/326K/326AK charger |
| KNB-73LCM 2000 mAh, Li-ion battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option] |
 | KSC-32 Rapid-rate single-unit charger for KNB-31A/32N/33L/41NC/43L/47L/48L/50NC
|
 | KSC-326AK Rapid-rate 6-unit charger CEC Compliant |
 | KVC-15 Rapid-rate DC vehicular charger adapter for the KSC-32 |
| KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only |
 | KBH-10 Spring action belt clip |
 | KBH-11 Spring action belt clip (2.5") |
| KBH-8DS Leather swivel belt loop with portable D-Ring attachment |
| KLH-137ST Firemen's Heavy-Duty Leather Shoulder Strap for a Heavy-Duty Leather Case (KLH-75B/76B/78B/79B//92/122/123/133/148/154) |
 | KLH-154K2 Heavy-duty leather carrying case for NX-210K2/410K2/411K2 |
| KLH-6SW Leather swivel belt loop / detachable swivel D-Ring back |
| KCT-51 Hirose 6-pin Adapter (adapts KVL/aftermarket audio acc. to portable connector)[Intrinsically Safe Approved Accessory] |
 | KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics |
| KHS-11BL 2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-12BL 3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-14 Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-BH Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-OH Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KMC-40 MIL-SPEC, Speaker Microphone with Antenna Connector [Intrinsically Safe Approved Accessory] |
| KMC-41M MIL-SPEC, IP54/55 Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-42WDM MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
 | KMC-51DM MIL-SPEC, IP54/55 DSP Digital Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
 | KMC-52 MIL-SPEC, IP67 (Immersion) DSP Digital Noise-canceling Speaker Mic |
