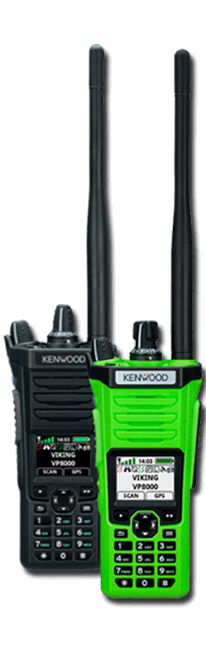

The KENWOOD Viking 8000 series Multi-Band, Multi-Protocol portable is specifically designed for today’s public safety agencies with advanced features and ergonomics to meet the first responder’s mission critical operational needs.
Frequency band:
VHF/UHF/700MHz/800MHz
Frequency range:
136-174 MHz
380-520 MHz
763-776, 851-870 MHz
Power Output:
VHF - 1W – 6W
UHF - 1W – 5W
700/800 MHz - 1W – 3W
Standard battery chemistry type:
Li-Ion
Number of Channels/Groups/Zones:
1024 Channels / 255 Zones
Channel spacing:
VHF - 12.5 / 15 / 25 / 30 kHz Analog - 12.5 kHz Digital
UHF - 12.5 / 25 kHz Analog - 12.5 kHz Digital
700/800 MHz - 12.5 / 25 kHz Analog - 12.5 kHz Digital
Dimensions W x H x D (with standard battery)
KNB-L2 (2600 mAh) 3.04/2.28 x 5.91 x 1.73 in. (77.3/58.0 x 150.0 x 44.0 mm) [W(Top/Bottom) x H x D, projections not included]
KNB-L3 (3400 mAh) 3.04/2.28 x 5.91 x 1.94 in. (77.3/58.0 x 150.0 x 49.4 mm) [W(Top/Bottom) x H x D, projections not included]
KNB-L11 (3900 mAh) 3.04/2.28 x 5.91 x 2.02 in. (77.3/58.0 x 150.0 x 51.4 mm) [W(Top/Bottom) x H x D, projections not included]
Weight (with standard battery)
KNB-L2 (2600 mAh) 18.7 oz (530.0 g)
KNB-L3 (3400 mAh) 20.2 oz (574.0 g)
KNB-L11 (3900 mAh) 20.7 oz (586.0 g)
Keypad / Keys
Full key models (w/ numeric keypad)
Display
Operating temperature
-22 °F to +140 °F (-30 °C to +60 °C)
Mil spec
810 C/D/E/F/G/H
IP Standards
Dust & Water: IP54, IP55
Immersion: IP67, IP68
 | KRA-22M VHF Low-Profile Helical Antenna 148-162 MHz |
| KRA-22M2 VHF Low-Profile Helical Antenna 162-174 MHz |
| KRA-22M3 VHF Low-Profile Helical Antenna 136-150 MHz |
 | KRA-23M UHF Low-Profile Helical Antenna 450-490 MHz |
| KRA-23M2 UHF Low-Profile Helical Antenna 470-512 MHz |
| KRA-23M3 UHF Low-Profile Helical Antenna 403-430 MHz |
 | KRA-25 High Gain VHF Helically Loaded Whip Ant 148-162 MHz |
 | KRA-26M VHF Helical Antenna 146-162 MHz |
| KRA-26M2 VHF Helical Antenna 162-174 MHz |
| KRA-26M3 VHF Helical Antenna 136-150 MHz |
 | KRA-27M3 UHF Whip Antenna 400-450 MHz |
| KRA-28 Broad-Band VHF Helic Loaded Whip Ant 140-170 MHz |
| KRA-29 Broad Band UHF Whip Antenna 380-430 MHz |
 | KRA-32K 700/800 MHz Whip Antenna |
| KRA-36 700/800 MHz Stubby Antenna |
| KRA-47MB Antenna, Multiband 136-870MHz, VP8000 |
 | KBP-8M2 AA Alkaline 12 Battery Case-No IP-Orange Cabinet |
|
KNB-11M Li-Ion Battery, 3900mAh, Non-IS, A-Pocket High capacity Li-Ion Battery for Viking. 3900 mAs, NOT rated for Hazardous Location/IS. |
 |
KNB-L2M Battery, Li-Ion 2600mAh (STANDARD) |
 | KNB-L3M Li-Ion 3400mAh (HIGH Capacity) |
 |
KNB-LS5CU Li-Ion Battery, 2000MAH, CSA, VP-T |
| KNB-LS7 Li-Ion Battery, 3800MAH, CSA, VP-T |
| KNB-LS7-IS Li-Ion Battery, 3800MAH, Labeled CSA US Intrinsically Safe |
 | KSC-32 Rapid Rate Single Unit Charger Single Unit tri-chemical rapid rate charger. Does not work with battery optimizing software.KENWOOD KSC-32 Single-Unit Tri-Chemistry Rapid Rate Charger Includes 110/220VAC auto-switching AC Adapter with US-Style line cord plug. Charges Ni-Cd, Ni-MH and Li-Ion battery Types |
 |
KSC-326AK Rapid Rate 6-Unit Charger
|
| KSC-526K Charger, Six Unit, Rapid Rate |
|
KSC-52AK Charger, single bay rapid rate, A-Pocket, VP-T |
| KSC-52BK Charger, single bay rapid rate, B-Pocket, VP-T |
| KSC-52PAW Charger Pocket A, KSC-52/526, KNB-L11, VP-T |
| KSC-52PBW Charger Pocket B, KSC-52/526, KNB-L2/L3/LS7, VP-T Style-B pocket insert for use with the KSC-52 Single Unit or KSC-526 6-Bay Chargers. Compatible with the KNB-L1, L2, L3, LS5, and LS7 series batteries. |
| KVC-23 Wall mount bracket for multibay charger, VP-T Wall Mount Bracket for KSC-326K/326AK/256K/256AK |
 | KSC-Y32K Charger,Single Unit, Rapid Rate Single Unit Intelligent tri-chemical rapid rate charger that works with battery optimizing software. Microprocessor controlled to prevent “over-charching”. Interchangeable adapter pods allow charging of a variety of battery models. Highly durable construction |
 |
KVC-15 Rapid Rate Dc Vehicular Charger Adapter For KSC-32 |
| KVC-23-C-CLIP Clip, KVC-23 Charger, High-Cap Battery KNB-L3/LS7 This is an optional clip if using a KVC-23 charger with High capacity battery models KNB-L3 or KNB-LS7. This clip will allow the high capacity batteries to be used with the KVC- 23 charger. Please also see the similar KVC-23V charger kit which already includes the clip for the high-capacity battery option. |
| KVC-23V KVC-23 Vehicular Charger Bracket and cables to mount KVC-23 vehicular charger. The KVC-23 Vehicular Charger includes an adjustable-angle steel bracket, D.C. power ignition sense and vehicular repeater control leads. Easily accessible Repeater ON/OFF control button. |
| R35-WELLSH114004A002 AC Cable for KSC-326AK Replacement AC cable for the KSC-326AK 6-bay VPx000 series charger. |
| KMB-30A Wall Mount Bracket For Multibay Charger Wall Mount Bracket for KSC-326K/326AK/256K/256AK |
| 5084600100 Top grain leather, 1 3/36 inches wide adjustable from approximately 52 to 60 inches long. It has multiple length settings and a forged belt buckle. |
 | KBH-11 Spring Action Belt Clip (2.5”) |
|
R50840000AS0 Anti Sway Belt Boston leather (English Bridle) leather for ultimate comfort and long life. Designed to increase unit stability, it measures approximately 11, ½ inches long and 1 inch wide. |
| R50840000L20 Leather 2” Belt Loop |
|
R50840000L30 Leather 3” Belt Loop |
| R50840000N20 Nylon 2” Belt Loop |
|
R50840000S40 Leather 4.25 In Slot Belt Loop |
| R50840000SS0 Shoulder Strap |
|
R50840000UB0 Utility Belt |
|
R50843LF2001 Case Leather Fire VP6000 L2 Top grain leather with high abrasion resistant finish, stainless steel rivets and nickel-plated brass snaps.This case includes Metal D-rings, with the ability to accept an optional shoulder strap. Includes a one-snap release leather retaining strap for secure hold. |
|
R50843LF3001 Case Leather Fire VP6000 L3 Top grain leather with a high abrasion resistant finish, stainless steel rivets, nickel plated brass snaps, metal D-rings, for a shoulder strap, and a one-snap release leather retaining strap. Designed to fit the L3 battery and also L2 battery with spacer. |
|
R50843LP2001 Case Leather Police VP6000 L2 D Swivel Top grain leather with high abrasion resistant finish, stainless steel rivets and nickel-plated brass snaps. It Includes a one-snap release leather-retaining strap. Works with L2 size battery. |
|
R50843LP3001 Case Leather Police VP6000 L3 D Swivel Top grain leather with high abrasion resistant finish, stainless steel rivets and nickel-plated brass snaps. It Includes a one-snap release leather-retaining strap for secure hold. Designed to fit the L3 battery and also L2 battery with spacer. |
|
R50843NP2001 Case Nylon Police VP6000 L2 D Swivel Specially designed tightly woven 1000 denier nylon for high abrasion resistance, stainless steel rivets and nickel plated brass snaps. Includes a one-snap release leather retaining strap. |
|
KW9130-LF VP8000 Leather Case, Fire, Large Battery L3/LS7/L11 Leather Case with integrated belt-loop plus D-rings for optional shoulder strap for fire service. Supports larger capacity KNB-L3, KNBLS7 and KNB-L11 batteries, or KNB-L2 with included padded spacer insert. Top grain leather with high abrasion resistant finish, stainless steel rivets and nickelplated brass snaps. It includes a snap release leather-retaining strap for secure hold. |
|
KW9130-LP VP8000 Leather Case, Police, D-Swivel Leather Case with integrated D-swivel post for Law Enforcement style belt-worn swivel. Supports larger capacity KNB-L3, KNBLS7 and KNB-L11 batteries, or KNB-L2 with included padded spacer insert. Top grain leather with high abrasion resistant finish, stainless steel rivets and nickelplated brass snaps. It includes a snap release leather-retaining strap for secure hold. |
|
KW9130-NP VP8000 Nylon Case, Police, D-Swivel Nylon Case with integrated D-swivel post for Law Enforcement style belt-worn swivel. Supports larger capacity KNB-L3, KNB-LS7 and KNB-L11 batteries, or KNB-L2 with included padded spacer insert. Specially designed tightly woven 1000 denier nylon for high abrasion resistance, stainless steel rivets and nickel plated brass snaps. It includes a snap release retaining strap for secure hold. |
|
KW9140-LF VP8000 Leather Case, Fire, L2/LS5 Sm Batt Leather Case with integrated belt-loop plus D-rings for optional shoulder strap for fire service. Supports the lower capacity batteries KNB-L2 or KNB-LS5 or the compact KNB-L1 with included padded spacer insert. Top grain leather with high abrasion resistant finish, stainless steel rivets and nickel-plated brass snaps. It includes a snap release leather-retaining strap for secure hold. |
|
KW9140-LP VP8000 Leather Case, Police, D-Swivel, L2/LS5 Sm Batt Leather Case with integrated D-swivel post for Law Enforcement style belt-worn swivel. Supports the lower capacity batteries KNB-L2 or KNB-LS5 or the compact KNB-L1 with included padded spacer insert. Top grain leather with high abrasion resistant finish, stainless steel rivets and nickel-plated brass snaps. It includes a snap release leather-retaining strap for secure hold. |
|
KW9140-NP VP8000 Nylon Case, Police, D-Swivel, L2/LS5 Sm Batt Nylon Case with integrated D-swivel post for Law Enforcement style belt-worn swivel. Supports the lower capacity batteries KNB-L2 or KNB-LS5 or the compact KNB-L1 with included padded spacer insert. Specially designed tightly woven 1000 denier nylon for high abrasion resistance, stainless steel rivets and nickel plated brass snaps. It includes a snap release retaining strap for secure hold. |
 | KEP-1 3.5mm Earphone Kit, Kmc-25/26/41m/42wm Speaker Mic 3.5 mm earphone kit for KMC-42 speaker mic earpiece with quick disconnect and noise attenuating eartube/earplug. Receive only. |
 |
KEP-2 2.5mm Earphone Kit For Kmc-49 Speaker Mic 2.5 mm earphone kit for KMC-49 speaker mic earpiece with quick disconnect and noise attenuating eartube/earplug. Receive only. |
| KHS-11BL 2-Wire Palm Mic W/Earphone, Univ Connector (BLACK) Earphone kit with PTT, microphone, and a radio connector. |
| 589580012401 Surveillance Kit, Black, 2-Wire, VP-T 2-wire Surveillance Kit for VP5000/VP6000 series radios - black. Kit includes a Microphone with PTT switch and a Transducer with Ear Tube, and radio adapter. The KCT- 51 adaptor attaches to the radio side using the attached screw. This Adaptor has a Hirose style 6-pin connector for accessory attachment. A matching connector attaches the KCT-51 to the audio and PTT. |
| 589580012402 Surveillance Kit, Beige, 2-Wire, VP-T 2-wire Surveillance Kit for VP5000/VP6000 series radios - beige. Kit includes a Microphone with PTT switch and a Transducer with Ear Tube, and radio adapter. The KCT- 51 adaptor attaches to the radio side using the attached screw. This Adaptor has a Hirose style 6-pin connector for accessory attachment. A matching connector attaches the KCT-51 to the audio and PTT. |
| 589580012402 Surveillance Kit, Beige, 2-Wire, VP-T 2-wire Surveillance Kit for VP5000/VP6000 series radios - beige. Kit includes a Microphone with PTT switch and a Transducer with Ear Tube, and radio adapter. The KCT- 51 adaptor attaches to the radio side using the attached screw. This Adaptor has a Hirose style 6-pin connector for accessory attachment. A matching connector attaches the KCT-51 to the audio and PTT. |
| BTH-300KIT1 Bluetooth Surveillance Kit, PTT + Earpiece, VP-T The BTH-300 series PRYMEBLU® Bluetooth (wireless) professional grade lapel microphone kit features a front mounted, easy to use, PTT button. The BTH-300 features a 3.5mm jack compatible. It comes with EH-1189sC Bud style earphone which has a 16” (retracted) Coil Cord and collar clip. |
| EH-1189SC Earphone, Bud Style, For BTH-300, VP-T Pryme EH-1189SC - Listen Only Earpiece - Ear Bud Style w/Coil Cable w/3.5mm Plug 90 degree plug. |
| BTH-900 Bluetooth Headset, BTH-900, Over The Head, VP-T Pryme BTH-900-EMB Bluetooth Dual Ear Muff Racing Style Headset & Microphone. Fully integrated Bluetooth technology. No wires! No external BT boxes! Clean and professional. Dual operation Bluetooth for use with both Cellphones or Tablets at same time as Two-way radios. Seperate control buttons for PTT (radio) and Cellphone (Answer / Call). Sealed rubber control switches give positive user feedback and are sealed to keep dust and moisture out. BTH-900 (Racing) style headset has extra large PTT button for use with heavy gloves. Two color LED indicator shows status of power, low voltage, linked, etc. |
| KHS-15D-BH Headset, BH W/Noise Cancelling Boom Mic, W/PTT Noise Cancelling earmuff headset with Boom Mic and in-line PTT. Behind-the-head support-band style for use with most hard hats and safety helmets. Compatible with VP5000/VP6000/NX-5000 portable radios. |
| KHS-15D-OH Headset, OH W/Noise Cancelling Boom Mic, W/PTT Noise cancelling earmuff headset with Boom Mic and in-line PTT. Over-the-head support-band style. Compatible with VP5000, VP6000, and NX-5000 portable radios. |
| KMC-49 Mil-Spec, Speaker Mic. With Antenna Connector IP67, IS(CSA), MIL-std, PTT button, two programmable buttons, earphone jack, and antenna connector (antenna is not included but can use standard portable antenna). 5/16-in. coax cable hex wrench is included. Available in 24 in. |
 |
KMC-54WDM Speaker Mic, Immersion,Compatible With ANR Feature IP67, IS (CSA), MIL-std, PTT button, two programmable buttons, and earphone jack. Coiled Cable length is 26 in. (Stretched length: 78 in.) |
| KMC-70GR Speaker Mic, 3PF Keys, HI-VIZ, VP-T IP67, IS (CSA), MIL-std, PTT button, two programmable buttons, and earphone jack(3.5mm). Coiled Cable length is 26 in. (Stretched length: 78 in.) |
|
KMC-70M Speaker Mic, 3PF Keys, Black, VP-T Speaker mic with PTT button, three programmable buttons, and earphone jack (3.5mm). Rated IP67, IS (CSA), MIL-std, Coiled Cable length is 26 in. (Stretched length: 78in.) |
| KMC-72W Speaker Mic, 2PF Keys, Black, VP-T Speaker Mic, 2PF Keys, VPx000 / NX |
| BTR-155 Bluetooth Speaker Mic, SAVOX, K551071 The Savox BTR-155 Bluetooth Remote Speaker Mic is compatible with the Kenwood Viking VPx000 radios. The rugged design of this Remote Speaker Microphone makes it light, robust (to IP55) and the function buttons have been designed so it can be operated with protective gloves. |
| V2-G4KC221-S Fire Speaker Mic, OTTO, 500°F, IS Whether in the fire or behind the hose, the OTTO 500 high temp fire speaker microphone exceeds the performance of any other speaker mic on the market. Designed to continue functioning even in extreme situations, the OTTO 500 gives fire professionals those critical minutes of communications that can mean the difference between life and death. The OTTO 500 is tested to function for more than five minutes at 500 F (260 C) utilizing special high-temperature materials in the case, cable and strain relief. |
| V6-10040-VP Kit, Bluetooth Mic W/Earphone, OTTO BT Revo NC2 This bluetooth speaker mic kit contains the OTTO BT Revo NC mic plus an audio matched high-output earphone. Rugged ergonomics for public safety, PTT and emergency buttons, MIL-SPEC tested. The top emergency button is fully programmable from Armada. |
| KPG-36XM Full Speed USb Programming Interface Cable |
