One Platform for All Your System Configurations

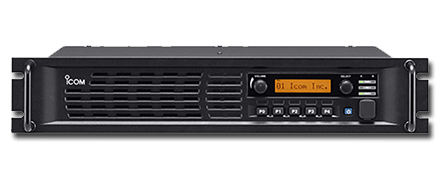

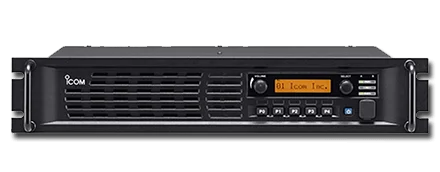

The FR5300 is a second generation IDAS™ repeater that builds upon the powerful product line with the affordable, low complexity digital simulcast capabilities and a new CPU/FPGA platform. Increase coverage with simulcast by adding repeaters to pair on the same networks.
IDAS™ Simulcast Systems
Installing the UC-FR5300 and the CF-FR5300 (SC) allows simulcast which increases coverage and eliminate dead spots. The IDAS™ Simulcast transmits digital repeater signals and GNSS synchronization signals on the same frequency to reduce signal loss in overlapping signal areas. Simulcast automatically selects the best signal by each repeater to distribute and retransmit. Compared to conventional multi-site systems, all NXDN™ compatible IDAS™ radios do not have to scan, vote or roam.
IP Remote Maintenance and Control
When connected to an IP network*, users can PC program, configure IP address settings, and monitor SNMP traps and Syslogs from a remote location. The RC-FS10 can be used as a simple dispatch station to communicate with other radio terminals through the repeater. Use the VE-PG4 RoIP gateway for connection to other protocols and telephone interfaces.
*With the optional UC-FR5300 network/controller board
Frequency band:
VHF, UHF
Frequency range:
IC-FR5300: 136-174 MHz
IC-FR6300: 400–470, 450–512, 450–520, 330–400* MHz (* Non-FCC)
Power Output:
50 W (adjustable to 5 W)
Number of Channels/Groups/Zones:
32 Channels
Channel spacing:
IC-FR5300: 6.25/12.5/25 kHz, 7.5/15.0/30 kHz
IC-FR6300: 6.25/12.5/25 kHz
Dimensions W x H x D
19.0 × 3.5 × 10.2 in
Weight
12.7 lb
Keypad / Keys
5 Programmable Buttons
Display
12-Digit Dot-Matrix Display
Operating temperature
-22 F to 140 F (-30 C to +60 C)
Mil spec
810 G
IP Standards
NA
Simulcast Conventional
Increase range in difficult RF environments with Simulcast Conventional. Simulcast Conventional uses one frequency for a for all subscriber units. The one frequency keeps signals strong in overlapping areas, this also eliminates the need for scanning, voting, and roaming. The UC-FR5300 board and CF-FR5300SC card are required to work with simulcast, simulcast only works with the FR5300.
Multisite Conventional Systems LINQ TM
Inserting the CF-FR5000 02 card into the UC-FR5300 board, the UC and repeaters increase their capabilities to include multisite conventional operation. Multisite conventional systems connect conventional repeaters using an IP network to merge geographically distributed repeaters and operate them as one, or allow UHF and VHF repeaters to share traffic in a crossover configuration. This is ideal for operations that can merge multiple talk sites into one. Industries such as construction, mining, education, transportation and logistics would benefit.
Multisite Conventional systems are possible with IDAS™ LINQ™. Choose from four configurations: LINQ™REPEAT, LINQ™REPEAT+, LINQ™VOTE, and LINQ™VOTE+.
Single Site Trunking
Installing and programming a UC-FR5300 board into the FR5300 repeater can transform the FR5300 from a conventional repeater into a trunked repeater system for a single site. Any IDAS™ subscriber digital radios are ready to operate on conventional or trunked digital radios for easy configuration choice. Single Site Trunking is ideal for a large area of operation with multiple groups and users.
Multi-site Trunking MultiTrunk
The UC-FR5300 board and CF-FR5000MT card in a repeater can be configured to a voting receiver, which is best for radios that cannot reach transmitters in areas of poor coverage. Once a signal is received at the voter, it is then transferred via IP to the repeater which then transmits the strongest signal. Voting allows the extension of indoor or underground communication which would benefit industries such as education, healthcare and hospitality.
Two RF modules* can be installed and operate independently. The front panel LEDs show the status of both channels.
*Optional UR-FR5300/UR-FR6300 required
