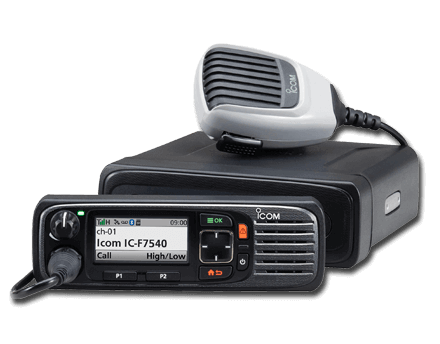

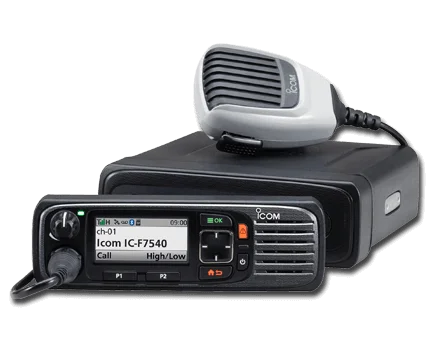

The F7500 series P25 mobiles support the ever-advancing P25 standard. The needs for both public service and public safety organizations are also addressed with the new P25 series. Icom’s third generation of this product not only captures the essentials, but offers dozens of new features and functions all in one new small form factor size. Public service and public safety organizations will like the built-in SD Card, GPS, USB interface, Bluetooth, and color display. Activation options for trunking, OTAR, OTAP and more, allow for expanded or upgraded services without burdening the user with unnecessary features. Icom is the choice when you want to take your P25 communications to the next level.
Frequency band:
700/800 MHz
Frequency range:
769–775 MHz (RX/TX), 799–805 MHz (TX),
806–824 MHz (TX), 851–869 MHz (RX/TX)
Power Output:
30 W, 15 W, 2 W (769–775, 799–805 MHz),
35 W, 15 W, 2 W (806–824, 851–869 MHz)
Number of Channels/Groups/Zones:
1024 Channels / 128 Zones
Channel spacing:
25*/12.5 kHz
Dimensions
174 × 55 × 150 mm; 6.9 × 2.2 × 5.9 in
Weight
1500 g; 3.3 lb
Display
High-resolution color LCD
Operating temperature
–30 °C to +60 °C; –22 °F to +140 °F
Mil spec
810-C, -D, -E, -F, -G
IP Standards
IP55
Intuitive User Interface
The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.
P25 Features
Multiple Controller Configurations
The F7500 series mobiles allows the user to configure the radio three ways to suit almost any application or installation requirement. The intercom function is available between controllers and/or COMMANDMIC.
The new COMMANDMIC is an identical physical layout and user interface as the F7010. By installing in into a vehicle it allows a secondary remote control of the F7500.
Additional Features
 | UX241 GPS antenna |
 | OPC1132 DC power cable (9.8ft) with 2-pin T connector. |
 | OPC2362 Zone copy cable. Mobile to handheld cable |
| OPC2363 Programming cable. |
| OPC347 DC power cable (23ft) |
 | VS3 Bluetooth pendant earpiece microphone w/PTT |
| HM220 Heavy duty microphone (IP54) for the F5400 series |
| HM220T Heavy duty microphone with DTMF keypad (IP54) for the F5400 series |
| HM221 Microphone (IP55) for the F5400 series |
| HM221T Microphone with DTMF keypad (IP55) for the F5400 series |
 | SM29 Desktop microphone for F5400 series |
 | HM218 Secondary remote control microphone, COMMANDMIC, for the F5400D/F6400D. |
 | OPC2364 1.9m/6.2ft Separation cable for RMK5/RMK7 |
| OPC2365 3m/9.8ft Separation cable for RMK5/RMK7 |
| OPC2366 5m/16.4ft Separation cable for RMK5/RMK7 |
| OPC2367 8m/26.2ft Separation cable for RMK5/RMK7 |
 | OPC2373 1.9m/6.2ft Separation cable for HM218 |
 | OPC2374 8m/26.2ft Separation cable for HM218 |
 | RMK5 Bracket & face plate for remote mounting for the F5400D/F6400D. |
 | RMK7 Dual head and separation kit for the F5400D/F6400D. |
 | SP30 Large external speaker 20W |
 | SP35 External speaker 5W with 3.5mm speaker jack and 2m cable |
| SP35L External speaker 5W with 3.5mm speaker jack and 6m cable |
