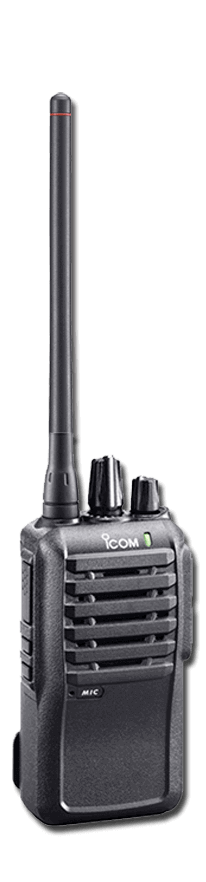

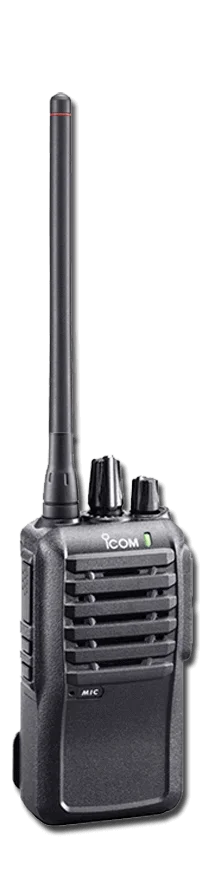

The F3001/F4001 Series is an easy-to-use entry-level portable with no special training required. The few knobs and buttons are generously sized for easy operation. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person. The radio series is ideal to meet the needs of schools, retail, golf courses, community centers and others with similar basic radio needs.
Frequency band:
F3001: VHF
F4001: UHF
Frequency range:
F3001: 136–174MHz
F4001: 400-470MHz, 450-512MHz
Power Output:
Up to 5W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
20 hours
Number of Channels/Groups/Zones:
16 Channels
Channel spacing:
12.5 kHz, 15/30 kHz
Dimensions H x W x D (with standard battery)
2.28 x 4.38 x 1.41 in
Weight (with standard battery)
9.5 oz
Keypad / Keys
None
Display
None
Operating temperature
-30°C to +60°C; -22°F to +140°F
Mil spec
810-C, -D and -E
IP Standards
IP54
Hands-Free Operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Built-in Signaling
The F3001 Series comes with all the popular signaling, including 2-Tone, 5-Tone, CTCSS, DTCS and MDC1200 PTT ID & emergency. The radio’s 2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio "stun" function disables a radio over the air and the "revive" function restores the stunned radio.
Additional Features
 | FASC25U 400-430MHz Antenna for LM portables |
 | FASC25V 136-150MHz Antenna for LM portables |
 | FASC26US 400-450MHz Stubby antenna for LM portables |
 | FASC26VS 136-144MHz Stubby antenna for LM portables |
 | FASC27VS 142-150MHz Stubby antenna for LM portables |
 | FASC28V 142-162MHz Antenna for LM portables |
 | FASC29V 160-174MHz Antenna for LM portables |
 | FASC55V 146-174MHz Standard antenna for LM portables |
 | FASC56VS 150-160MHz Stubby antenna for LM portables |
 | FASC57U 430-470MHz Standard antenna for LM radios (red ring) |
 | FASC57VS 160-174MHz Stubby antenna for LM portables |
| FASC61UC 380-520MHz Cut antenna for the specific frequency desired |
| FASC61VC 136-174MHz Cut antenna for the specific frequency desired |
| FASC62V 150-160MHz High gain antenna for LM portables (10") |
| FASC63V 155-165MHz High gain antenna for LM portables (9.5") |
 | FASC72U 470-512MHz Antenna for LM portables |
 | FASC73US 450-470MHz Stubby antenna for LM portable radios |
| LAIRD EXH 160 MXI 155-160MHz Antenna |
| LARSEN SPHL10160IC 151-163MHz Helical ¼ wave antenna center tuned to 157MHz |
 | BP263 Battery case that holds 6 AA alkaline batteries |
 | BP264 Battery Ni-MH 7.2V 1400mAh |
 | BP265 Battery Li-ion 7.4V 1900mAh |
 | MB124 Alligator-type belt clip |
 | OPC515L DC power cable for single-unit rapid chargers |
 | OPC656 DC power cable for gang charger |
| LCF3000 SWIVEL Leather carrying case |
 | NCF3000 CLIP Nylon carrying case |
 | AD120 Adapter cup that fits into the BC197 02/03 for the BP264 NiMH battery |
 | AD121 Adapter cup that fits into the BC197 12/13 for the BP265 Li-ion battery |
| BC123SA AC adapter for rapid chargers |
 | BC147SA AC adapter for trickle chargers |
 | BC157S AC adapter for gang chargers |
 | BC192 12 110V trickle charger for the NiMH BP264 |
 | BC193 Rapid charger for radios with BP265 Li-ion battery |
 | BC197 02 6-unit charger for radios with the BP264 NiMH battery |
| BC197 12 110-240V 6-unit charger for radios with the BP265 Li-Ion battery |
| BC197 13 220V 6-unit charger for radios with the BP265 Li-Ion battery |
 | CP23L 12V cigarette lighter cable for use with rapid chargers |
 | MB130 Vehicle charger bracket holds rapid charger and requires cigarette lighter cable |
 | HS94 Earpiece headset |
 | HS95 Headset with boom microphone |
 | HS97 Earphone with throat mic headset |
 | OPC2004 Adapter plug to to use the HS94/95/97 for F3001/4001/3101D/4101D & V80 radios |
 | OTTO V4EX2CS5 Explorer lightweight headset with flexible earloop w/boom mic (2-pin right angle screw down connector) |
| HM-HD7I7WP Large waterproof speaker microphone with 3.5mm accessory jack |
 | HM158LA Compact speaker microphone with revolving clip and earphone jack |
 | HM159LA Large speaker microphone with earphone jack and metal alligator clip> |
| IMPACT HD3-I3 Heavy duty speaker microhpone with 3.5mm accessory jack |
 | OTTO V110282 Speaker microphone earpiece (2.5mm straight plug) |
 | OTTO V110433 Speaker microphone earpiece (3.5mm right angle plug) |
 | OTTO V2C2CS11 Legacy speaker microphone (2-pin screw down connector) |
| IAS BC-RHADPTR Charger adapter 100-240V for use with the IAS OPC-RHUSB |
| IAS BC-RHCHG1 RedHawk microphone single-unit charger 100-240V |
| IAS BC-RHCHG12 RedHawk microphone 12-unit charger 100-240V |
| IAS BP-RHBATT1 RedHawk microphone 3.8V 1200mAh battery |
| IAS CP-RHLP Cigarette lighter plug 12-24V requires 2 USB cables |
| IAS CS-RHSW Utility software to upload stored tracks, optional PC programming, online demos. |
| IAS OPC-RHI2 RedHawk 2-pin cable connects GPS mic to radio |
| IAS OPC-RHUSB USB cable to connect mic with PC or charger adapter. |
| IAS REDHAWK Speaker microhpone with GPS receiver. |
 | HM128L Speaker microhpone with GPS receiver. |
| HM128L Earphone/microphone with 2-pin right angle connector |
| HM153LA Covert durable microphone with earphone combination |
