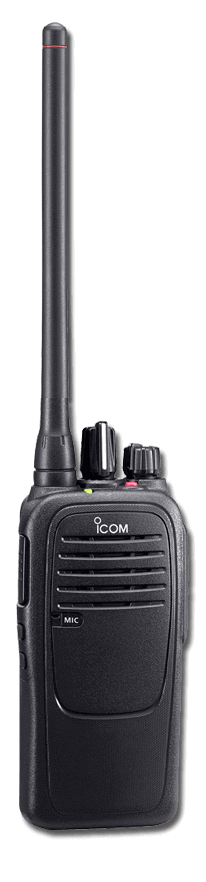

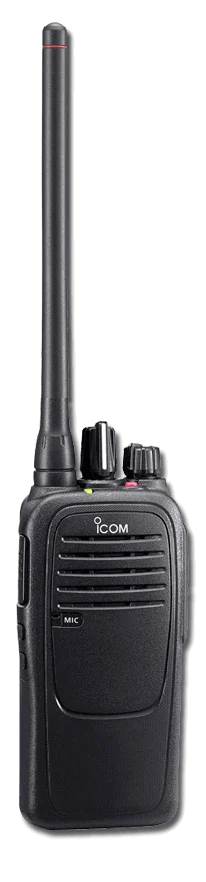

The F1000/F2000 Series is a sleek portable radio that fits nicely in your hand-designed to be the go to entry to mid-level radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as a built-in motion sensor, channel announcement function, and a rugged waterproof & dustproof chassis. The radio series is ideal to meet the needs of a wide range of businesses, such as those involved in the education, hospitality, and retail.
Frequency band:
F1000: VHF
F2000: UHF
Frequency range:
F1000: 136–174MHz
F2000: 400-470MHz, 450-512MHz
Power Output:
VHF: 5W; UHF: 4W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
Up to 14 hours
Number of Channels/Groups/Zones:
16 or 128 Channels
Channel spacing:
12.5
Dimensions H x W x D (with standard battery)
2.2×111.5×24.5mm; 2.06×4.39×0.96 in
Weight (with standard battery)
240g; 8.47oz
Keypad / Keys
F1000/F2000: None
F1000S/F2000S: Limited/Simple
F1000T/F2000T: 10 Ten-keypad
Display
F1000/F2000: No Display
F1000S/F1000T/F2000S/F2000T: Eight character alphanumeric display
Operating temperature
–30°C to +60°C; –22°F to +140°F
Mil spec
810-C, -D, -E, -F, -G
IP Standards
IP67
Built-in Motion Sensor
With a built-in motion sensor, the F1000 Series can detect its position, state of motion and non-motion and can send an emergency signal. The motion function detects if the transceiver is moving or shaking, for example, during a chase. The lone worker and man down functions are programmable.
Built-in Signaling
The F1000 Series comes with all the popular signaling, including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling. MDC features are also programmable, including:
 | FASC25U 400-430MHz Antenna for LM portables |
 | FASC25V 136-150MHz Antenna for LM portables |
 | FASC26US 400-450MHz Stubby antenna for LM portables |
 | FASC26VS 136-144MHz Stubby antenna for LM portables |
 | FASC27VS 142-150MHz Stubby antenna for LM portables |
 | FASC28V 142-162MHz Antenna for LM portables |
 | FASC29V 160-174MHz Antenna for LM portables |
 | FASC55V 146-174MHz Standard antenna for LM portables |
 | FASC56VS 150-160MHz Stubby antenna for LM portables |
 | FASC57U 430-470MHz Standard antenna for LM radios (red ring) |
 | FASC57VS 160-174MHz Stubby antenna for LM portables |
| FASC61UC 380-520MHz Cut antenna for the specific frequency desired |
| FASC61VC 136-174MHz Cut antenna for the specific frequency desired |
| FASC62V 150-160MHz High gain antenna for LM portables (10") |
| FASC63V 155-165MHz High gain antenna for LM portables (9.5") |
 | FASC72U 470-512MHz Antenna for LM portables |
 | FASC73US 450-470MHz Stubby antenna for LM portable radios |
 | BP279 Battery Li-ion 7.2V 1485mAh battery |
 | BP280 Battery Li-ion 7.2V 2280mAh battery |
 | MB133 Alligator-type belt clip |
 | OPC515L DC power cable for single-unit rapid chargers |
 | OPC656 DC power cable for gang charger |
 | LCF1000S Leather carrying case |
| LCF1000SS Leather carrying case |
| LCF1000TS Leather case for F1000T/2000T radios with a full keypad cutout with a swivel loop |
 | NCF1000C Nylon carrying case for F1000/2000/D non-display radios with a clip |
 | NCF1000SC Nylon carrying case for F1000S/2000S display radios with a clip and cutout |
 | NCF1000TC Nylon carrying case for F1000T/2000T radios with a clip and cutout for the display and keypad |
| AD130 Adapter cup that fits into the BC214 for the F1000/D series |
| BC123SA AC adapter for rapid chargers |
 | BC157S AC adapter for gang chargers |
 | BC213 Rapid charger with a US plug for radios with the BP279/BP280 battery |
| BC213NAC Rapid charger cup for radios with the BP279 battery |
 | BC214 6-unit charger with US plug AC adapter and cups installed |
 | CP23L 12V cigarette lighter cable for use with rapid chargers |
 | MB130 Vehicle charger bracket holds rapid charger and requires cigarette lighter cable |
 | HS94 Earpiece headset |
 | HS94LWP Earhook headset with boom microphone with screw down connector (2-pin) for hands-free operation. |
 | HS95 Headset with boom microphone |
 | HS95LWP Behind-the-head type with boom microphone with 2-pin screw down connector |
 | HS97 Earphone with throat mic headset |
| VS4LA PTT switch cable to communicate using the HS94/95/97 |
| HM-HD7I7WP Large waterproof speaker microphone with 3.5mm accessory jack |
 | HM158LA Compact speaker microphone with revolving clip and earphone jack |
 | HM159LA Large speaker microphone with earphone jack and metal alligator clip |
| SP-AT1 Single pin listen only w/QD acoustic tube |
 | HM128L Earphone/microphone with 2-pin right angle connector |
| HM153LA Covert durable microphone with earphone combination |
